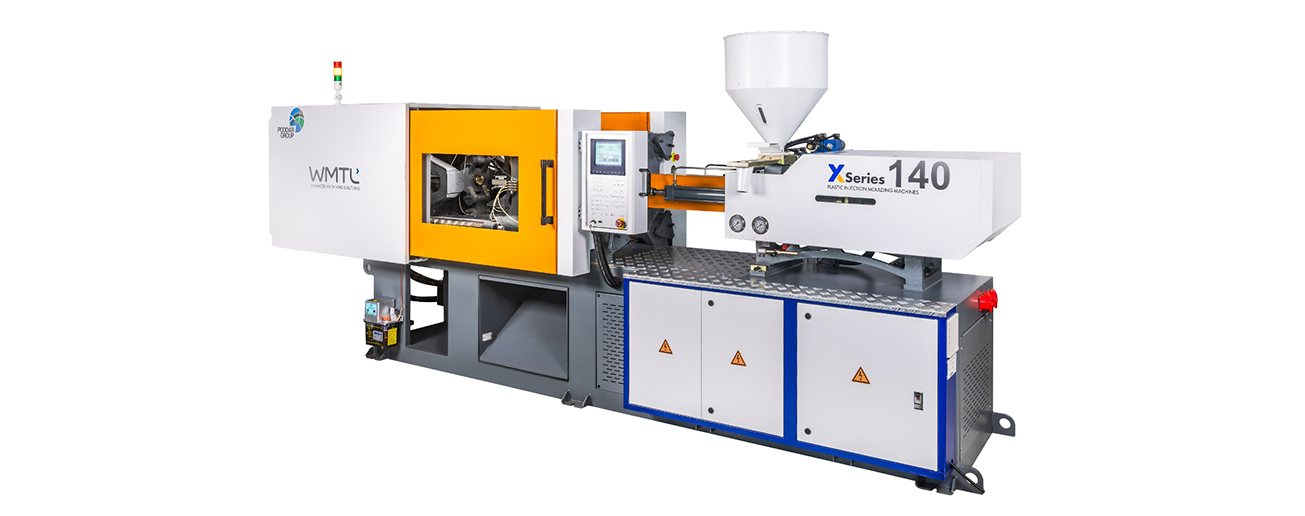

X Series

Plastic Injection Moulding Machines
(80 Ton to 2500 Ton)
Electric System
  • Support for multiple languages
  • System with dual core microprocessors makes it high speed
  • Anti noise, low power consumption
  • Internal inspection Ethernet interface, convenient connection with a record of 120 groups with alarm recording function
  • Computer boots self-test function and mechanical failure alarm
  • Internal inspection Ethernet interface, convenient connection with a record of 120 groups with alarm recording function
  • Computer boots self-test function and mechanical failure alarm
  • Supports simultaneous monitoring of multiple machines through an office computer, corporate managers, etc.
  • User friendly design layout manipulation Servo drives can achieve a variety of control methods of digital control
Injection Unit
  • Adopting Taiwan Technology
  • Hydraulic circuit designed to meet international safety standards
  • Automatic read oil temperature
  • No welding pipe in order to achieve stable flow
  • Adopt international well-known hydraulic components
Technical Specification
Description UNIT X110 X140 X170
INJECTION UNIT
A B C A B C A B C
Screw Diameter
 mm 35 38 42 38 42 45 42 45 50
Screw L/D Ratio
 L/D 22.8 21 19 22.1 20 18.6 23.5 22 19.8
Shot Volume
cm3 163 192 235 226 277 318 311 357 441
Shot Weight (PS)
 gms 148 175 213 206 252 289 283 325 402
Injection Rate
gms/sec
 90 104 128 94 115 132 138 160 196
Injection Pressure
Mpa
219 186 158 208 171 149 203 177 143
Screw Diameter
r/min
 205 220 190
CLAMPING UNIT
Clamping Force
KN 1100 1400 1700
Toggle Stroke
 mm 350 380 435
Space between tie bars (WxH)
mm 370 X 370 420 X 420 470 X 470
Max. Mould Height
 mm 380 450 520
Min. Mould Height
 mm 150 160 180
Ejector Stroke
 mm 100 120 135
Ejector Tonnage
 KN 30 50 50
OTHERS
Max. Pump Pressure
 Mpa 16 16 16
Motor Power
Kw 11 15 18.5
Heater Power
Kw 8 9.3 12.3
Machine Dimensions
 mtrs 4.2 X 1.2 X 1.79 4.48 X 1.33 X 1.90 5.04 X 1.43 X 2.13
Oil tank Capacity
 ltrs 190 270 300
Machine Weight
 T 3.2 4 6
X230 X270 X310 X360 X410
A B C A B C A B C A B C A B C
45 50 55 50 55 60 55 60 65 65 70 75 70 75 80
23.4 21 19.1 25.2 22.9 21 23 21 19 22.5 21 19.5 22 20 19
397 490 593 530 641 763 677 805 945 1175 1362 1564 1501 1723 1960
362 446 540 482 583 694 615 732 860 1069 1239 1423 1366 1568 1784
124 154 186 187 227 270 223 266 312 337 368 422 335 384 437
207 168 138 205 169 142 200 168 143 208 180 157 174 152 133
175 185 190 155 172

2300 2700 3100 360 4100
475 540 590 660 705
520 X 520 570 X 570 615 X 615 660 X 660 720 X 700
530 550 630 680 780
200 200 200 250 250
140 150 150 160 150
70 70 70 70 80

16 16 16 16 16
22 30 30 37 37
14.8 16.8 18 24.6 29.5
5.68 X 1.50 X 2014 5.9 X 1.60 X 2.25 5.98 X 1.66 X 2.35 7.21 X 1.88 X 2.34 7.4 X 1.9 X 2.35
300 380 385 620 700
7 8 9.5 12.5 16
Description DESCRIPTION UNIT X460 X530
INJECTION UNIT A B C A B C D
Screw Diameter mm 70 75 80 75 80 85 90
Screw L/D Ratio L/D 22 20 19 22.7 21.2 20 18.9
Shot Volume cm3 1501 1723 1960 1722 1960 2213 2481
Shot Weight (PS) gms 1366 1568 1784 1567 1783 2013 2257
Injection Rate gms/sec 335 384 437 386 442 499 560
Injection Pressure Mpa 199 173 152 191 168 148 132
Screw Diameter r/min 169 130
CLAMPING UNIT
Clamping Force KN 4600 5300
Toggle Stroke mm 740 770
Space between tie bars (WxH) mm 770 X 770 820 X780
Max. Mould Height mm 780 810
Min. Mould Height mm 250 330
Ejector Stroke mm 200 200
Ejector Tonnage KN 110 150
OTHERS
Max. Pump Pressure Mpa 16 16
Motor Power Kw 45 55
Heater Power Kw 29.5 32.6
Machine Dimensions mtrs 7.5X 1.95 X2.4 8.82X 2.05X 2.82
Oil tank Capacity ltrs 720 900
Machine Weight T 20 28
X650 X780 X1000 X1200
A B C D A B C D A B C D A B C D
90 95 100 105 90 95 105 110 95 100 105 110 100 110 120 130
23 21 20 19 23 21 20 18.5 25.5 23 21.9 20.9 23 20.9 19.1 18.5
2544 2834 3140 3412 2925 3259 3982 4369 3544 3927 4330 4751 4367 5284 6288 7380
2315 2579 2857 3150 2662 2966 3623 3977 3225 3645 3940 4323 3974 4808 5722 6716
552 612 679 748 574 640 708 781 580 717 867 948 580 717 867 948
184 165 149 135 194 174 143 130 195 175 158 143 197 163 137 117
149 110 100 100

6500 7800 10000 12000
870 950 1000 1200
880 X 880 980 X 950 1125 X 1085 1180 X 1100
900 960 1100 1250
350 400 400 500
250 280 325 325
150 210 215 245

16 16 16 16
37 + 27 45 + 37 45 + 45 55 + 45
42.8 54.3 59 67
10.2 X 2.2 X 2.71 11.43 X 2.4 X 3.14 12.15 X 2.6 X 2.85 12.15 X 2.6 X 2.85
1100 1200 1700 2050
32 42 53 60


STANDARD FEATURES FOR
X SERIES MACHINES
INJECTION UNIT
  • Nitrited Screw barrel
  • Extended nozzle
  • Alarm for low temperature
  • Three stage Injection process control
  • Injection position with linear scales
  • Stainless steel hopper
CLAMPING UNIT
  • Five Point Twin Toggle System
  • Hydraulic Single Pumping Unit
  • Automatic Mould Setting Feature
  • Hard Chrome Plated Alloy Steel Column
  • Low Pressure Mould Protection Setting
  • Electrical and Mechanical Safety Setting
  • Three Stage Mould Locking Stroke Control
  • Linear Scale Control for Position Monitoring
HYDRAULIC UNIT AND OTHERS
  • Automatic Lubrication System
  • Reputed Hydraulic Components
  • High temperature Alarm
  • Bypass Filter Device


OPTIONAL FEATURES FOR
X SERIES MACHINES
INJECTION UNIT
  • Biletallic Screw and Barrel
  • Special Heaters for Power Savings
  • Shut Off Nozzle
  • Extra Long Extended Nozzle
  • Hopper Dryer
  • Auto Loader
CLAMPING UNIT
  • Ejector on Fly
  • Multiple Core Pulling
  • Robot Interface
  • Water Manifold With More Connections
  • Air Ejection
